DESCRIPTION

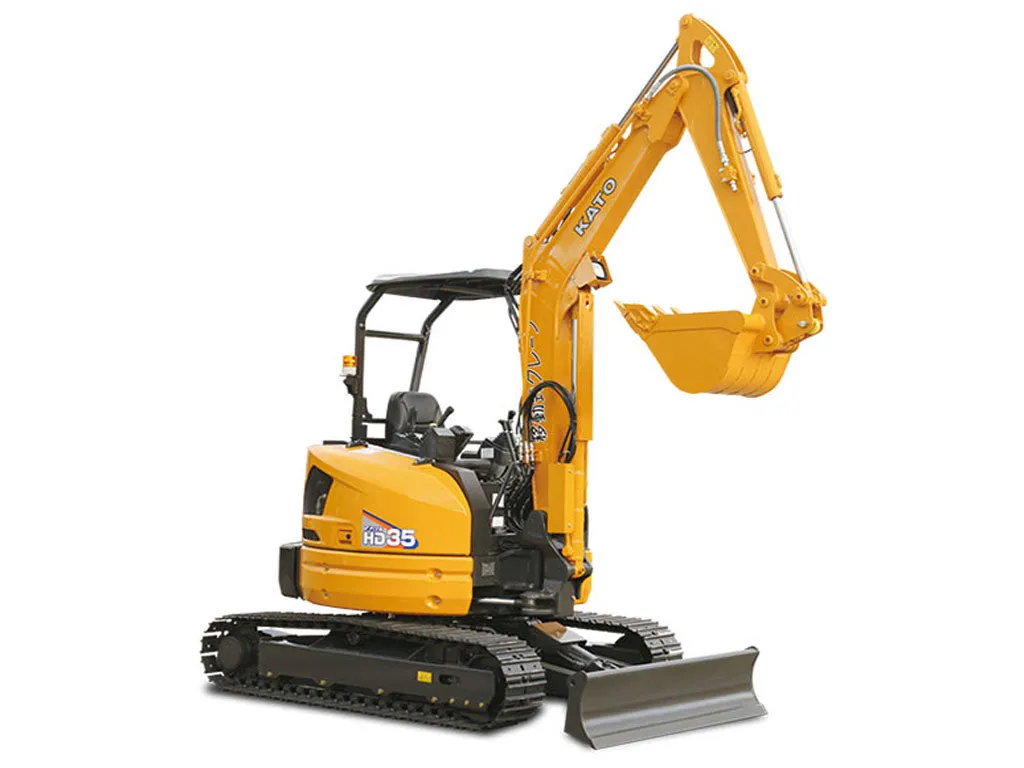

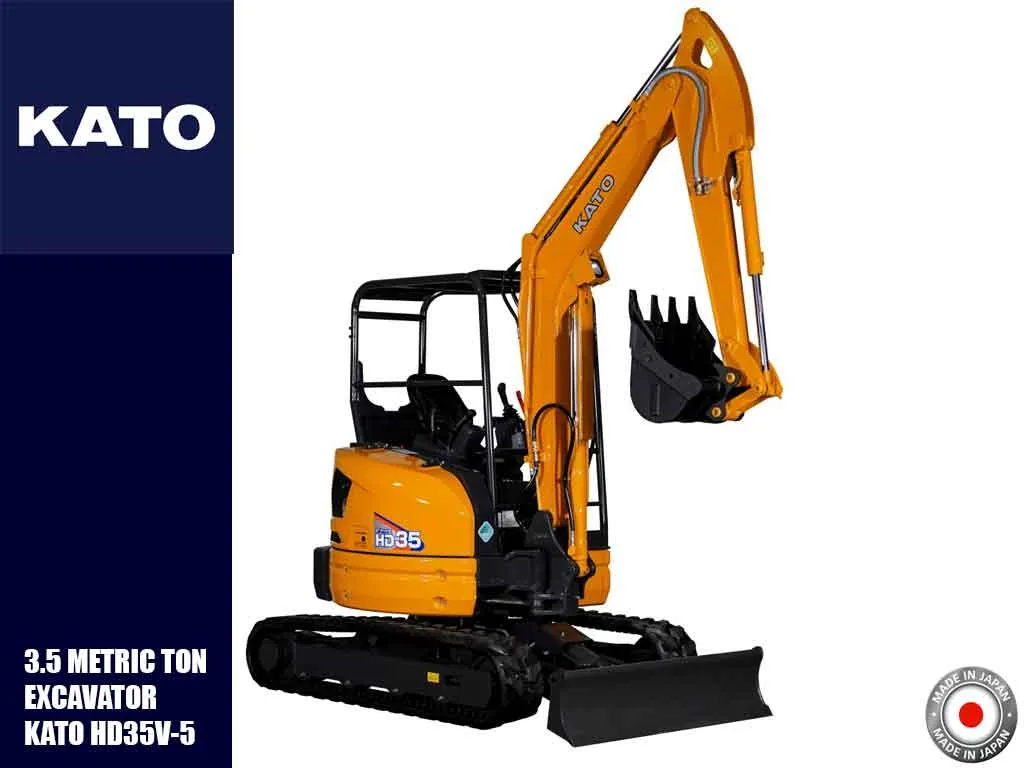

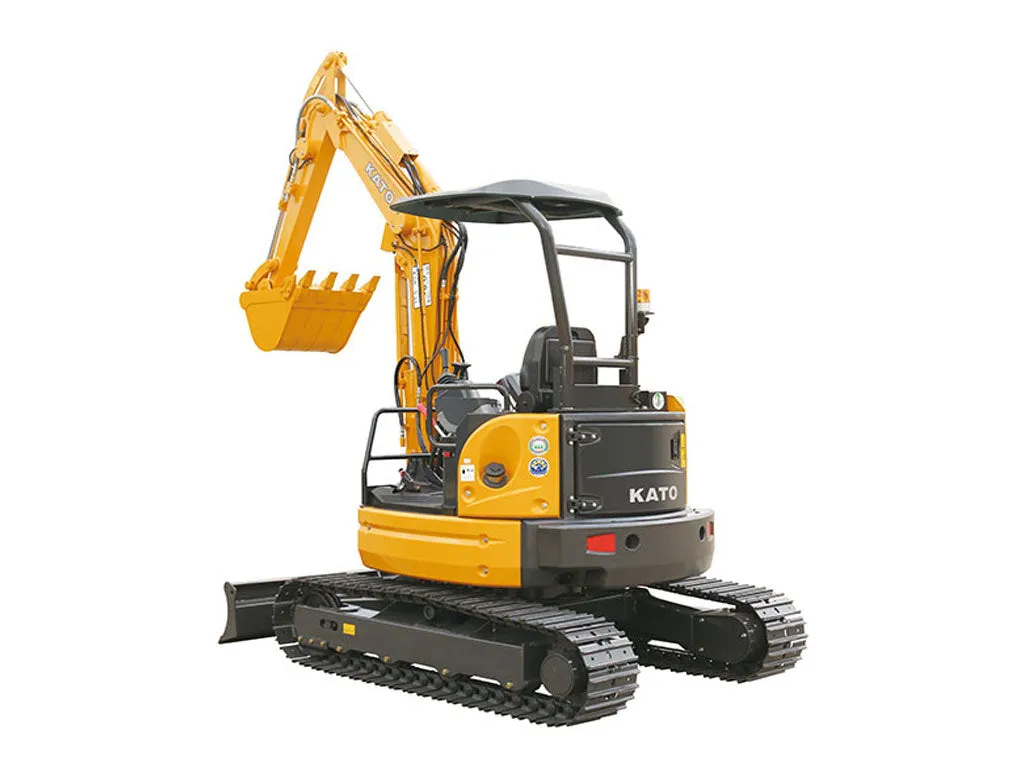

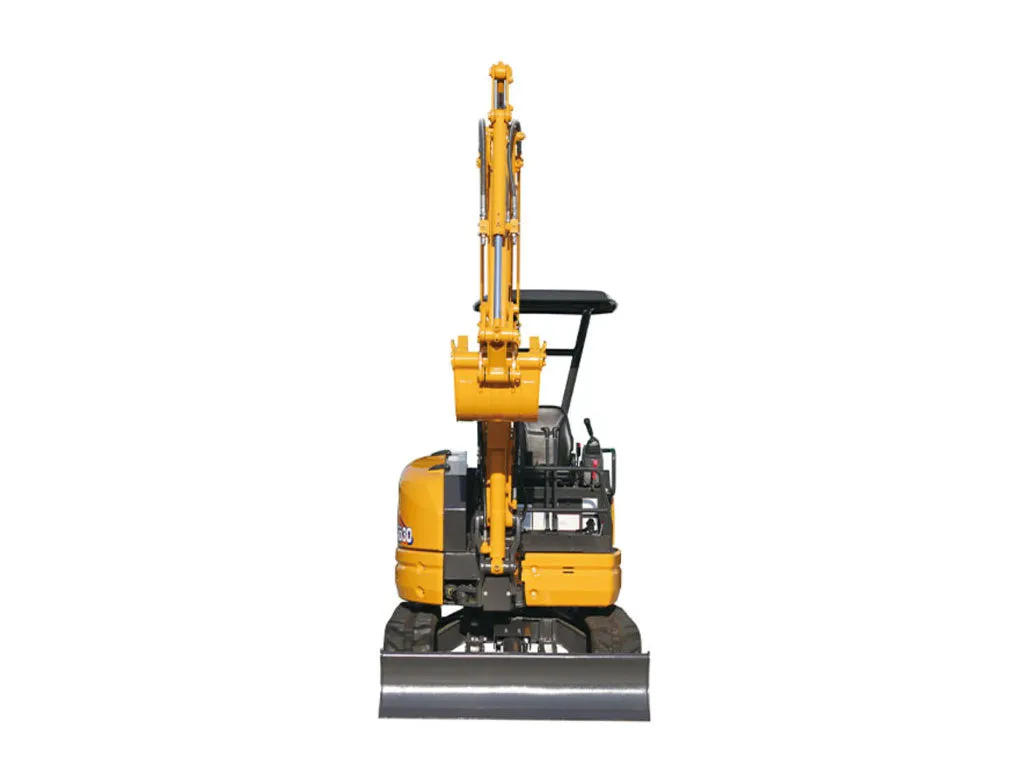

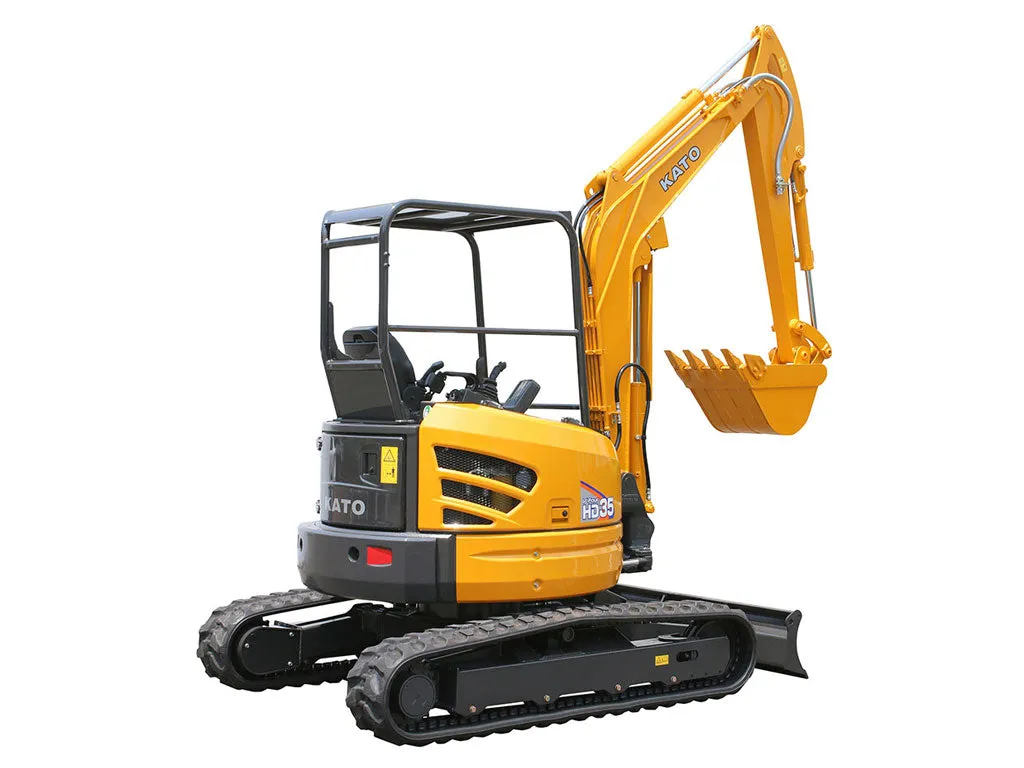

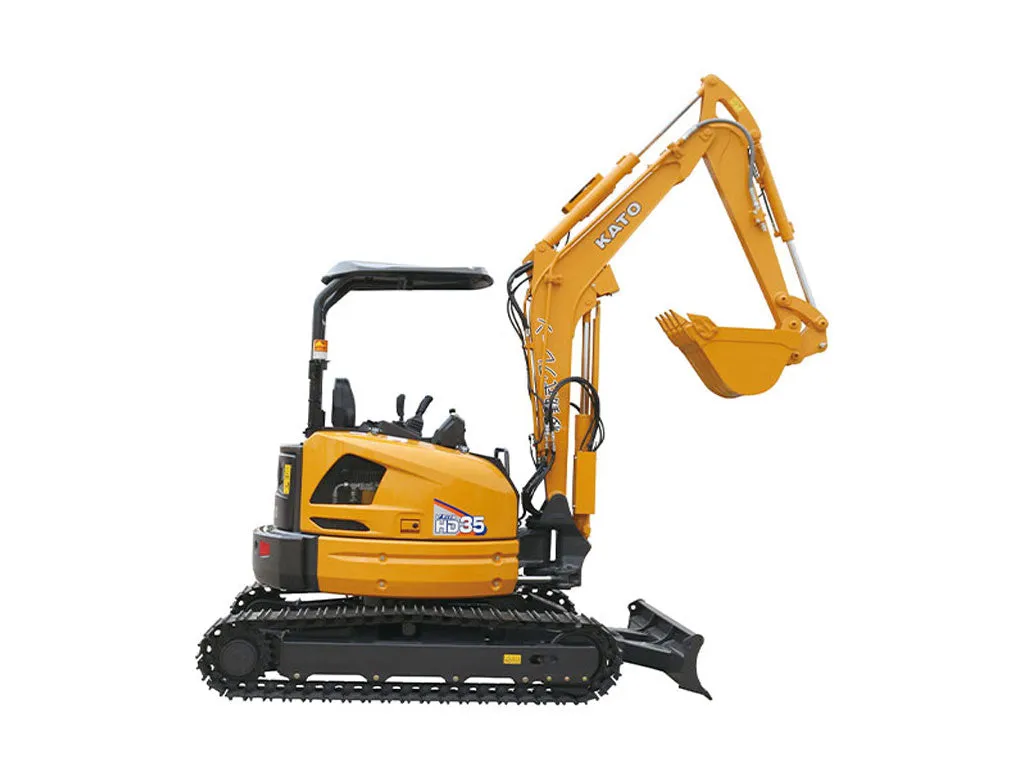

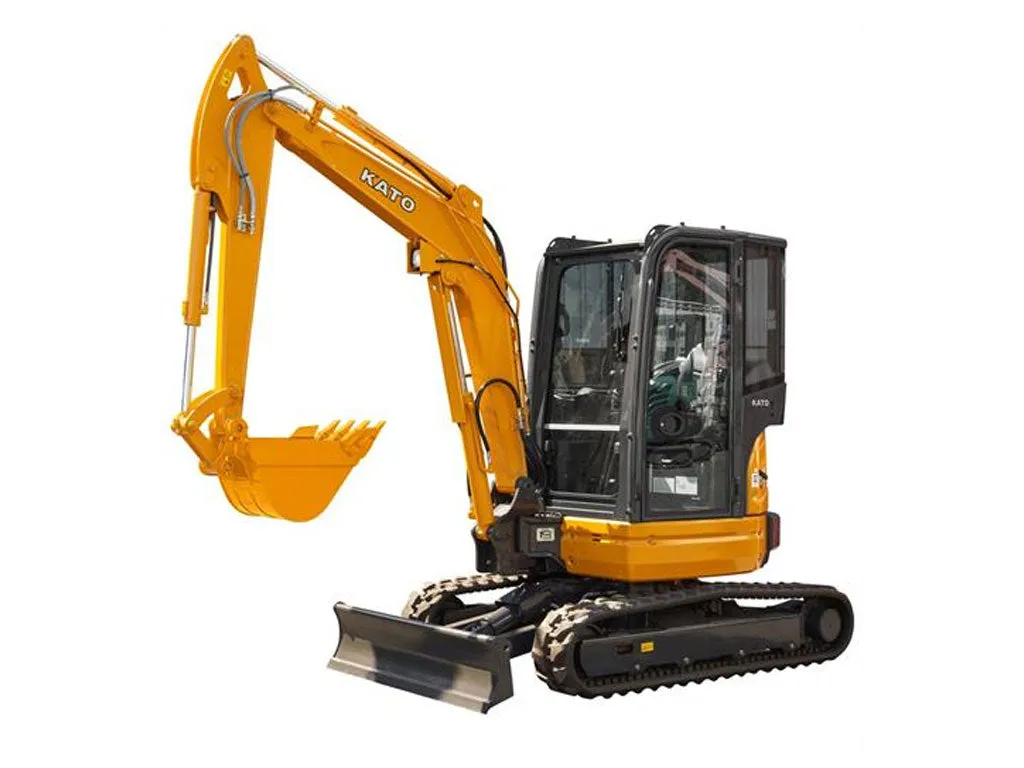

Check out the 3.5 metric ton class KATO HD35V-5 excavator.
BASICS
ACCESS KATO’s V5 line features wide-opening access panels & large compartments for working around the engine and hydraulic systems

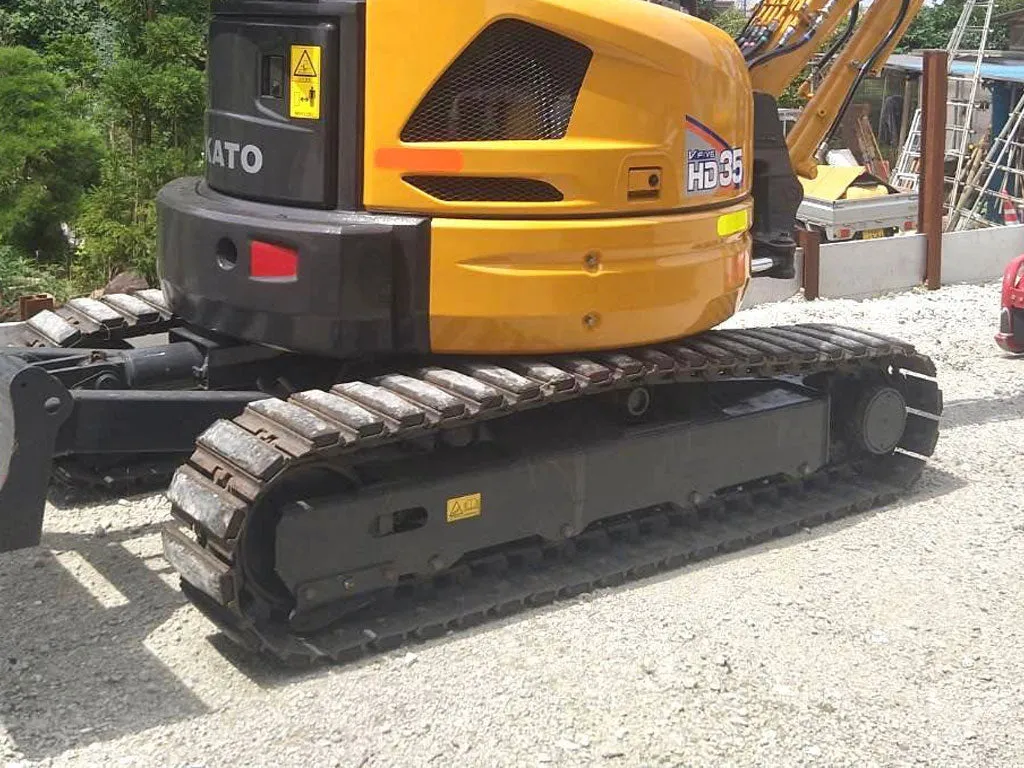

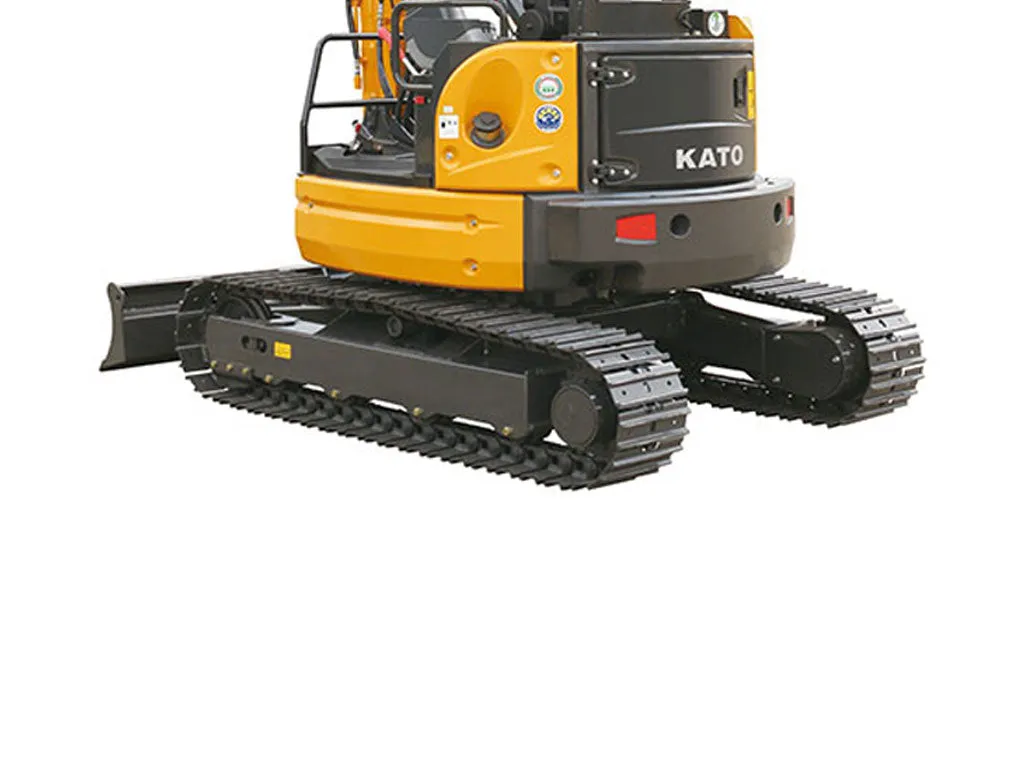

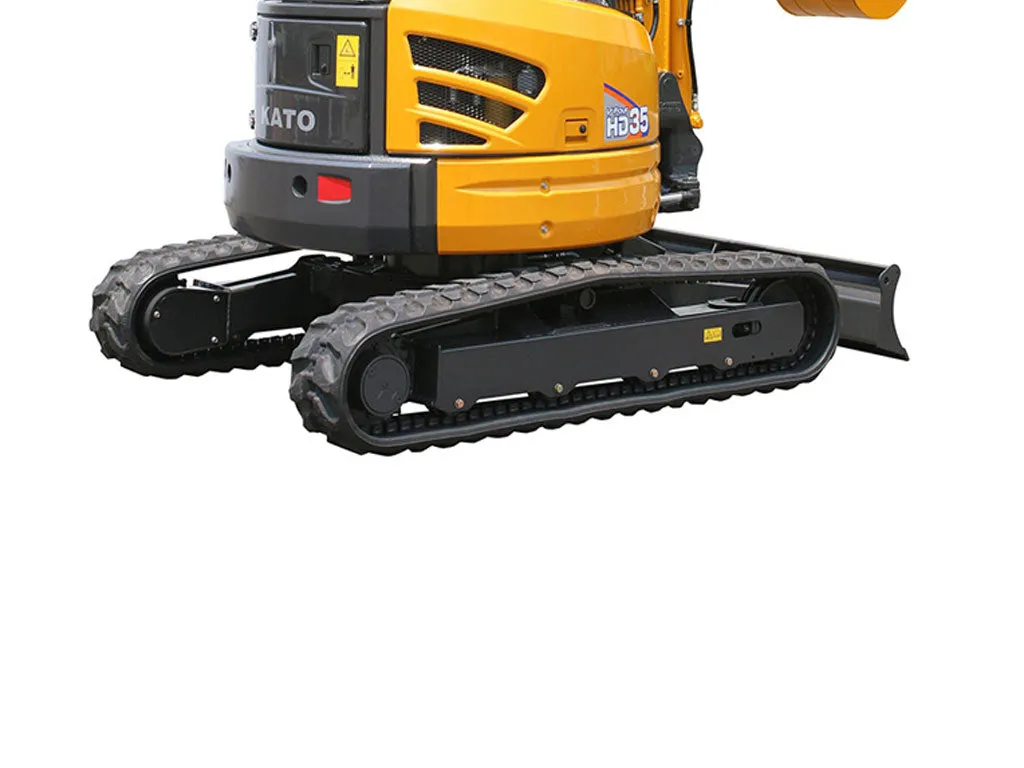

EXPAND The 35V5 offers hydraulic expandable tracks, ranging between 61” and 71”, giving the operator greater flexibility and stability.
CONTROL KATO’s V5 line features highly responsive pilot controls and easy to read instrument panels, all within the most comfortable cabs on the market.
EXTEND Add 2’ of digging depth with the optional Hydraulic Extend-a-Hoe (slide arm) on the KATO 35V5 excavator.
FEATURES
World-Standard Safety
- ROPS Certified
Error-Prevention
- All-lever lock
- Neutral engine-start
- Auto-parking brake in swing & traction motors
High Power Digging and Quick Response
- Digging force increased by 10%
- Quickly responsive 4-pump system
Easy Maintenance
- Large covers for easier access
Easy Fuel Refilling
Low Fuel Consumption
All-new V5 Generation Zero Tail Swing Mini Excavator improvements
- Easily visible monitor
- Legroom enlarged by 20%
- Cabin room enlarged by 25%
- Centralized switches
- Spare power port
STANDARD EQUIPMENT
- PUSH BLADE
- EXPANDABLE RUBBER TRACKS
- AUXILARY HYDRAULICS
- CONTROL PATTERN CHANGER VALVE
* CALL FOR FREIGHT PRICES AND AVAILIBILITY
SPECIFICATIONS
| MODEL | HD35V-5 |
| TRANSPORT LENGTH | 15'7" |
| WIDTH | 5'1" |
| HEIGHT | 8'1" |
| WEIGHT OPERATING | 8082 LBS |
| WEIGHT TRANSPORT | 7606 LBS |
| MAX DIG RADIUS | 18' |
| MAX DIGGING DEPTH | 10'11" |
| MAX VERTICLE DIG | 9'2" |
| MAX DUMP HEIGHT | 12' |
| MAX DIG HEIGHT | 17' |
| FRONT TURN RADIUS | 7'2" |
| RIGHT BOOM SWING | 6'3" |
| SWING SPEED | 9 RPM |
| TRAVEL SPEED | 1.7-2.9 MPH |
| GRADEABILITY | 30 DEGREES |
| GROUND PREASURE | 4.4 PSI |
| BUCKET DIGGING FORCE | 7688 LBS |
| BOOM SWING | OFFSET WITH CYLINDER |
| SWING ANGLE | 50 / 80 DEGREE |
| HYDRAULICS | |
| SYSTEM | 25 GPM |
| AUXILARY | 16 GPM |
| ENGINE | |
| MAKE |
YANMAR |
| MODEL | 3TNV88F |
| HP | 23 |
| FUEL | 11 GAL |
